This Marvelous Electrically Operated and Controlled Musical Instrument is More Than a Piano - It Produces Sustained Notes of the Lowest and Highest Register, Over a Range Heretofore Unattainable, and, Moreover, is Played Like a Regular Piano
In India, far away, as the popular song goes, the natives are content to regale themselves musically with plaintiff notes given forth by a goat skin stretched over the end of a hollowed log, upon which the musician beats a tune with the flat of his hand.
The music of the caveman was the wind is sighing through the trees, accompanied by the rustle of the leaves. Even they wanted to express themselves in a harmonious manner, hence the drum, the horn and other crude instruments of musical expression.
Then we may possibly expect some marked advances in our musical culture and education since the advent of the "Choralcelo," despite the prophecies of those who take a pessimistic view of life in general.
The piano becomes a tongue-tied infant beside the latest masterpiece of the musician's art. At times its notes thunder forth and seem to shake the very earth itself, and then again they may be subdued to an elusive softness like unto the faint notes of a distant church choir.
But what is it? How is it accomplished? What is the result of many years of untiring labor on the part of several of the cleverest men of the world? What is it upon which a fortune that would ransom a king has been spent? The Choralcelo!
The Choralcelo, the most wonderful musical instrument ever thought out by the human mind, is like nothing else the world of music has ever known. This masterpiece reproduces any piece of music in any form of instrument, from a string to a flute; not only does it reproduce them, but the notes emitted by it are sustained, pure and sweet, which is entirely different from the ones produced by the instruments that are in present use.
Practically all the musical instruments, previous to the invention of the Choralcelo, carry into the tone which they produce certain impurities which arise from the manner in which they are caused to vibrate. The violin interrupts the free vibration of the string by the grating rub of the bow. The piano adds the noise that results from the blow of the hammer on the string - while the organ mingles the breathiness of its air current with the pure vibrations of the column of air in the pipe. In like manner all instruments employing extraneous contacts to start the vibration destroy the purity of the note produced. And as they seek to amplify the tone they have produced they increase the intrusion and false sounds. The soft pedal of the piano, the swell-box of the organ, the mute of the violin, are just so many outrages on the purity of the tone.
The Choralcelo, by the very means which it employs in producing the tones, is freed from all obstructions. Vibration without contact, involving perfect freedom of vibration, and thus the Choralcelo gives all the natural overtones and harmonics; rich - full - pure and perfect, thus opening to the musician wonderful possibilities of expression and emotional power of which he possibly never dreamed.
The manner in which this result is accomplished is one of wonder. It is the subtle pull of the electro-magnet which now achieves pure tone production. These electro-magnets are caused to act directly upon the strings of the instrument.
The most delicate graduation of tone power can be produced by the mere variation of the strength of an electric current, and not by smothering devices which the present form of instrument employs. The tone, therefore, retains all its original purity through all vibrations and intensity, something that has been impossible heretofore.
We will next inspect the mechanism employed to perform these wonders. It may be stated that the vibrating elements are caused to oscillate by means of a pulsating electric current sent through an electro-magnet acting on the vibrating membrane.
The machine which beaks up continually the electric current into a series of waves is really the "heart" of the Choralcelo. The operating device consists essentially of a series of metal discs having a certain number of insulating segments inserted into their peripheries. These discs are arranged to revolve at a fixed speed. Silver-tipped brushes are so placed that they will bear upon the revolving discs. It will thus be seen that in order to produce the fundamental periodicity of any given "string", it is only necessary to rotate a disc containing a certain number of segments at the correct speed.
A large number of combinations are possible through the manipulation of a few keys, which correspond to the stops of an organ, and such a keyboard is clearly shown at Fig. 1. This resembles a piano, and it really is one, with additional keys and pedals. The pedals are used to vary the strength of the current sent through the electro-magnets.

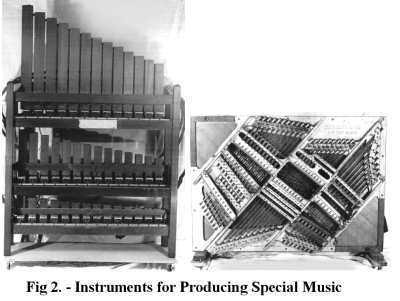

A tremolo effect is given by means of a slow speed interrupter giving a pulsating current at a few revolutions per second. The instrument which produces this effect is depicted on the right of Fig. 2, while the one towards the left reproduces tones representing a flute. The regulation piano tone is produced with the usual percussion hammers, which may be thrown into or out of action by the pressure of a key. The staccato notes of the piano may be struck upon strings already vibrating with the pulsating current. Thus sustained notes of a higher pitch are produced upon the string.

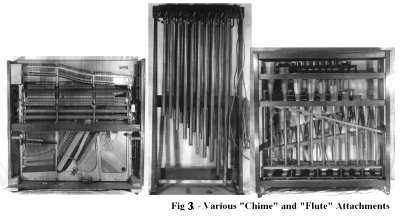

A piano which employs both the electro-magnets and hammers is clearly shown on the left of Fig. 3. Note the large number of wires which are employed for connecting the various for connecting the various magnet coils. It is an engineering feat in itself to even make and wire the various circuits.
Marvelously sweet tones are produced by vibrating pieces of brass, wood and aluminum. In fact, any resonant body susceptible to vibration may be made to emit tones. In order to cause these bodies to vibrate, it is necessary to place within them a small piece of iron, so that the electro-magnets may attract them. Instruments that are operated by this method are depicted in Fig. 3. The one toward the right is an instrument that imitates a flute. The electro-magnets are placed underneath the tubes, which are made out of wood and act as resonating chambers. The magnets are caused to act on iron discs mounted at the lower end of the tube. Another style of flute instrument is illustrated in Fig. 4. This employs a different variety of tubes, ranging from a very high tone to a very low one. The smaller pipes give the latter tone, while the larger ones the former.
The instrument shown in the center of Fig. 3 illustrates a brass chime. The tones are produced by hammers, each of the tubes being supplied by one. These are operated by electro-magnets, as perceived in the upper bracket of the stand. These are also connected to the same keyboard.
The very deep tones of an organ are produced by vibrating diaphragms placed beneath metal horns. A pair of electro-magnets are held a minute distance away from the diaphragm and serve to vibrate the latter when the pulsating current is applied. The volume of the tones is powerful and is very pleasant although it is very low. By increasing the power in the electro-magnets, the strength of the tones is so much increased that it is almost impossible to imagine the effect.
"Echo" combinations may also be installed without limit wherever their effect may be most beautiful at any distance from the master instrument. Thus the greatest cathedral may be filled with a glory of sound. The tower may be used to flood the surrounding country with the same divine melody. It may also be carried to the quiet cloister and to the private room. An instrument played in one place may repeat its music elsewhere.
The Choralcelo was developed and its wonderful basic principle discovered by Melvin L. Severy of Arlington, Mass., and George B. Sinclair. These savants have been working for twelve years to bring this musical instrument up to the perfection which it has reached today. One cannot predict its possibilities or limits as it is really still in its early stages of development.
We are indebted to Wilber E. Farrington of the Choralcelo Co., for our illustrations.
